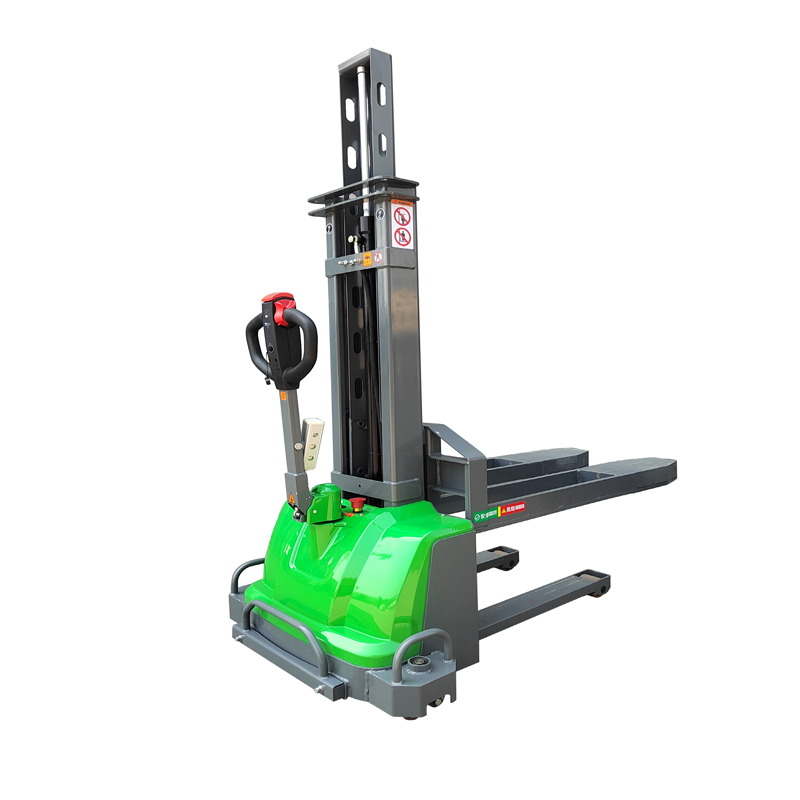

Self Lifting Semi Electric Stacker SDYG0511

Double linkae cylinder assembly

Both fork and frame can lift or be fixed

A versatile semi-electric stacker that lifts itself onto a lorry or van! It has a lifting capacity of up to 500kg up to 1300mm, travels with the load and a great alternative to having a tailgate.

i-ngritës Nr.	kg (lb).	1551601	1551602
model	mm (në).	SDYG0511	SDYG0513
Rated capacity	mm (në).	500(1100)
Qendra e ngarkesës	mm (në).	400(15.7)
Max .fork height	mm (në).	1100(44)	1300(51.2)
Min .fork height	mm (në).	90(3.5)
Gjatësia e pirunit	mm (në).	1150(45.3)
Gjatësia e përgjithshme	mm (në).	1600(63)
Gjerësia e përgjithshme	mm (në).	790(31.1)
Lartësia e përgjithshme	mm (në).	1400(55.1)	1600(63)
Whole height (after tape file shelf)	mm (në).	2700(106.3)	2900(114.2)
Rreze rreziku	mm (në).	1100(44)	1120(44.1)
Fork overall Width	mm (në).	535(21)
Wheels base	mm (në).	860(33.9)
Rrota e përparme e ngarkesës	mm (në).	NylonΦ70x60（2.6x2.4)
Rear steering wheel	mm (në).	NylonΦ100x50（4x2)
Balance wheel	mm (në).	NylonΦ40x26（1.6x1)
Training wheel	mm (në).	NylonΦ30x26（1.2x1)
Lifting speed(Without load)	(Mm / s)	110
Lifting speed(With load)	(Mm / s)	80
Lowering speed (without load)	(Mm / s)	80
Lowering speed (with load)	(Mm / s)	80
Motors lifting	kw	12V0.8
Battery capacity	V / O	12/33
Pesha e baterisë	kg (lb).	10(22)
Pesha neto	kg (lb).	197(433.4)	219(481.8)
